55 inch video wall parameters
specification | Model | SW-PJ550-01 | SW-PJ550-02 | SW-PJ550-03 | SW-PJ550-04 |
Panel | LCD Size | 55" | 55" | 55" | 55" |
Panel type | LD550DUN-TKB2 | LD550DUN-TKA1 | LD550DUN-THB8 | LD550DUN-THA8 |
Brightness | 500cd/m²(typ.) | 700cd/m²(typ.) | 500cd/m²(typ.) | 700cd/m²(typ.) |
| Splicing gap | 3.5MM | 3.5MM | 1.8MM | 1.8MM |
Contrast Ratio | 1400:1(typ.) | 1400:1(typ.) | 1400:1(typ.) | 1400:1(typ.) |
Pixel pitch | 0.63(H)mm x 0.63(V)mm |
Frame rate | 60Hz |
Viewing angle | 178°(H)/178°(V) |
Life | 30,000hrs(min.) |
Color saturation | 72% |
Display area | 1209.6mm(H) x 680.4mm(V) |
Color degree | 1.07B |
Power | Power | 100~240V,50~60Hz |
Maximum power | ＜220W |
Stand-by power | ＜0.5W |
Project | Scalar | MSTAR V56 |

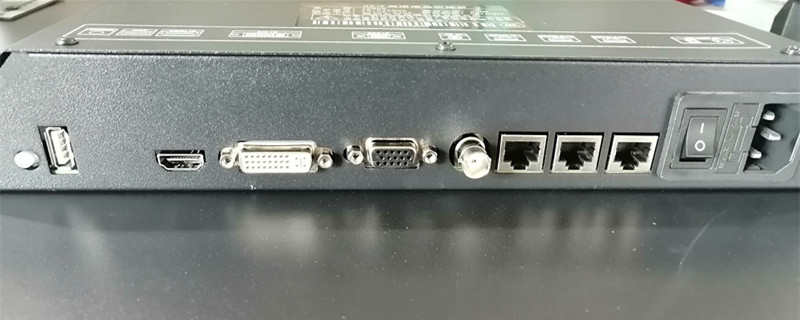

Input Interface | USB IN | 1 |
HDMI IN | 1 |
DVI IN | 1 |
VGA IN | 1 |
CVBS IN | 1 |
RS232 IN | 1 |
Output Interface | RS232 IN | 2 |
Structure | N.W(kg.) | 23±1.0KG |
G.W(kg.) | 52±1.0KG(2-in-1) |
Bare Dimension | 1213.5 x 684.3 x 128mm |
Packing Dimension | 1400 x 430 x 875mm (2 in 1 carton) |
Shell material | metal |
Shell color | black |
Wall Bracing | 8-M6 Nuts,600 x (20+360+20) mm |
Accessories | Remote | 1 |
Power Line | 1 |
Certificate | 1 |
Instruction | 1 |
Warranty card | 1 |
Rs232 Connect Line | 1 |
RJ45 to RS232 interface socket | 1 |
Remote receiver | 1 |
Battery | 1(pair) |
Functions | Support 8 bits dual LVDS (1920 * 1080) HD display |
Using 3-D digital comb filter |
True color OSD, humanized operation menu |
Adopt MSTAR ace-5 automatic color and image enhancement engine to improve image contrast ratio, detail, skin color, edge, etc |
Perfect factory setting mode |
Adopt 3-D noise reduction technology |
Built-in splicing software to splice into a large screen |
Support USB2.0 software upgrade |
Using programmable 12 bit RGB gamma correction technology |
