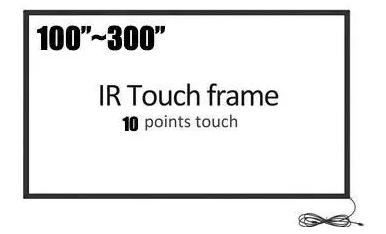

Custom infrared touch frame-parameter
Demo video
External frame material | aluminium extruded sections |
Shell color | black |
Width of upper frame | 25mm |
Width of lower frame | 28mm |
Frame thickness | 12.3mm |
resolution ratio | 32768x32768/4096x4096 |
response speed | 5ms-10ms |
Touch accuracy | 5mm |
Output mode | Fingers, touch the pen and other opaque objects |
output form | Coordinate output |
Number of theoretical clicks | Infinite times |
interface type | USB2.0 |
Electronic characteristics
scan frequency | 280HZ |
power supply mode | USB takes power |
supply voltage | DC+5V |
working current | <120MA |
environmental character istics
temperature range
|
Operating temperature：-10—50°C |
Storage temperature：-20—60°C |
relative humidity
|
Operating humidity: 10% -85%RH with no condensation |
Storage humidity: 10% -90%RH with no condensation |
Light resistance |
Light resistance |
water resistance | surface waterproofing |
Software features
Touch point type | 10,12,16, |
Touch technology | 3D light source scan |
scanning rate | 100 Frame / Seconds |
Software interface protocol | TUIO protocol |
life length | For 50,000 hours, x200 |
Touch of the supported operating system | Windows system / Android system / LINUX system |
