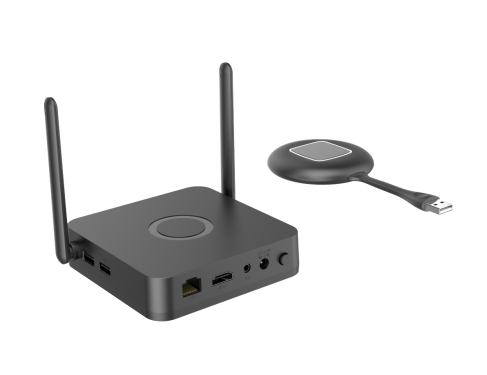

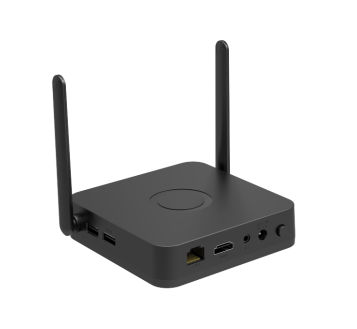

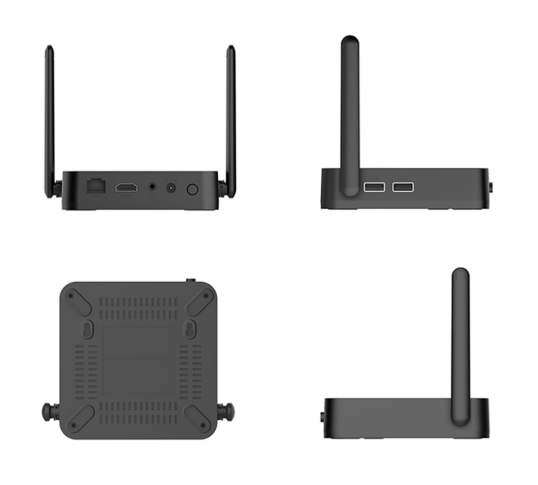

Wireless screen sharing-SW01Q

Windows   Mirroring via software

Installation

Keep PC and box at the same internet,No need installation

Support System

Windows 7/8/10

Resolution

1920*1200,1920*1080、1366*768、1360*768、1280*800、1280*720，1024*768

Frame Rate

Audio&Video 18~30Frame

Delay time

100~200ms

Display mode

Support extended screen

Connection paths number

128

The most qty display screen

Single Screen

Connecting Internet

1. When box connect to RJ45,PC Wi-Fi or wired connection of Network

2. When box connect to Wi-Fi,PC Wi-Fi or wired connection of Network

3. PC Wi-Fi Connecting to box 5G hotpot

Wireless USB Dongle

Installation

No installation, no configuration

Connection

USB Device

Support system

Windows 7/8/10,Apple Mac

Resolution

720P~1080P

Frame Rate

Audio&Video 18~30Frame

Delay time

100~200ms

Transmit distance

No obstacle 30m

Display mode

Support extend screen（Windows 7/8/10）

Connection number

1~8(If above8pcs, need additional routers)

The most qty display screen

Single screen

Wireless Speed

TX 300Mbps

Wireless Protocol

IEEE 802.11 a/g/n/ac

Channel

5.8G, Multi channel Selection

Authentication Protocols

WPA2-PSK

Upgrading method

PC USB Upgrading the dongle

Phones Wiress Mirroring

Dual Wi-Fi

5GHotspot &2.4G Wi-Fi working at same time,While mirroring,   the phone can go surfing.

iPhone

iOS8 above, AirPlay mirroring,support multi-screens

Android phone

No need APP for mirroring, support Miracast of different android phones

Scanning Screen

Android devices scan QR to download APP

Touch System

Connector

USB HID

Operation System

System version

Linux

CPU

RK3229

HDMI output

1

DDR

256M

USB

2

Flash Memory

256M

RJ45

1

Soft AP

802.11AC 5.8G

Wi-Fi

2.4G

HDMI output

Resolution

Max 4K 30Hz

Adaptor

Input

DC:12V

Max consumption

12W

Size

Size（L*H*W）

Accessory

Power adaptor

1

Wi-Fi Antenna

2

USB button

>=1

Others

Environment

0℃~40℃(working temperature)

10%~90%(working humidity)
