Windows Mirroring via software |
Installation | Keep PC and box at the same internet,No need installation |
Support System | Windows 7/8/10 |
Resolution | 1920*1080、1366*768、1360*768、1280*800、1280*720 1024*768 |
Frame Rate | Audio&Video 18~30Frame |
Delay time | 100~200ms |
Display mode | Support extend screen |
TouchBackControl | Support Mouse mode return |
Connection paths number | 128 |
The most qty display screen | Single Screen |
Meeting Mode | Host mode | The host can touch the list of screens to select the designated PC screen |
Participant mode | During the meeting,when non-host transmits the screen, whoever press the button and who can transmit. |
Connecting Internet | 1. When box connect to RJ45,PC Wi-Fi or wired connection of Network 2. When box connect to Wi-Fi,PC Wi-Fi or wired connection of Network 3. PC Wi-Fi Connecting to box 5G hotpot |

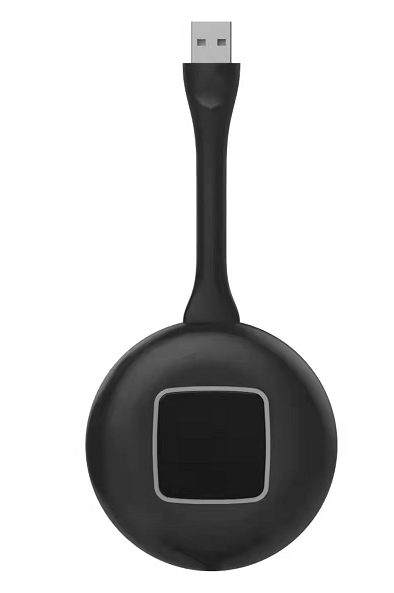

Wireless USB Dongle |
Installation | No installation, no configuration |
Connection | USB Device |
Support system | Windows 7/8/10,Apple Mac |
Resolution | 720P~1080P |
Frame Rate | Audio&Video 18~30Frame |
Delay time | 100~200ms |
Transmit distance | No obstacle 30m |
Display mode | Support extend screen（Windows 7/8/10） |
TouchBackControl | Support 10 fingers touch returns（Windows 7/8/10） |
Support mouse mode return （Mac） |
Connection number | 1~8(If above8pcs, need additional routers) |
The most qty display screen | Single screen |
Wireless Speed | TX 300Mbps |
Wireless Protocol | IEEE 802.11 a/g/n/ac |
Channel | 5.8G, Multi channel Selection |
Authentication Protocols | WPA2-PSK |
Upgrading method | PC USB Upgrading the dongle |
Meeting Mode | Host Mode | The host can touch the list of screens to select the designated PC screen |
Participant mode | During the meeting,when non-host transmits the screen, whoever press the button and who can transmit. |
Phones Wiress Mirroring |
Dual Wi-Fi | 5GHotspot &2.4G Wi-Fi working at same time,While mirroring, the phone can go surfing. |
Scanning Screen | Android devices scan QR Codes and casting |
Cross Segments | Under the same Network, the screen transmission can between different network segments |
iPhone | iOS8 above，AirPlay mirroring，support multi-screens |
Android phone | Android 5.0 and above, and download USBdisplay.cn APP can mirroring videos which can pass-through sound |
MiraPlay Mode | No need APP for mirroring, support Miracast，AirPlay，USB wireless mirroring |
Other Functions |
Rotating | Support 90° 180°270° photos Rotating |
Dynamic Password | Support APP mirroring, AirPlay,Windows software mirroring |
Take notes | Gesture Erasure, support scan QR code and share |
Audio output | HDMI output |
RTC | Built-in super capacitor to maintain normal operation 1week if power down |
Restart Timely | Support timely restart and keep the whole year work normally without power down. |
Other APPs | Customization Welcome, files explores and screen saver |
Router Mode | Support 2.4G&5.8G AP at the same time for mirroring(optional) |
Video/Audio |
Video decoding | Support H.264,H.265,VP8,RV,WMV,AVS,H.263,MPEG4 |
Decoding solution | 4K |
Touch System |
Connector | USB HID | Mouse mode | Support |
IR touch control | Support | Capacitive touch panel | Support |
Operation System |
System version | Android 7.1 |
|
|
CPU | ARM Cortex A7 x 4 | HDMI output | 1 |
DDR | 1G DDR3 | VGA | 1 |
Flash Memory | 8G | TF | Max support 64G |
Lan | RJ45 | IR Receiver | Support |
Soft AP | 802.11AC 5.8G | Wi-Fi | 2.4G |
HDMI output |
Resolution | Max 1920x1080 60Hz |
Adaptor |
Input | DC:12V | Max consumption | 12W |
Size |
Size（L*H*W） | 120*120*21.5mm |
|
|
Accessory |
Power adaptor | 1 |
|
|
WIFI antenna | 3 | USB button | >=1 |
Others |
Environment |
| 0℃~40℃(working temperature) |
|
|
| 10%~90%(working humidity) |
|
|
