Inclined plane Digital Signage parameter
Ø HD: HD 16:9 full view LCD display with resolution of 1920 * 1080 is adopted
Ø ultra thin: industrial appearance, reasonable design, firm and firm, with the thinnest part of 21.5mm
Ø process: aluminum alloy oxidation wire drawing frame, the body adopts metal sprayed hardware cold-rolled steel plate, and the surface is 3.5mm tempered glass
Ø performance: convection mode is adopted for internal heat dissipation, so there is no worry about long-term load work
Ø system: Android, windows, stand-alone and other schemes are optional

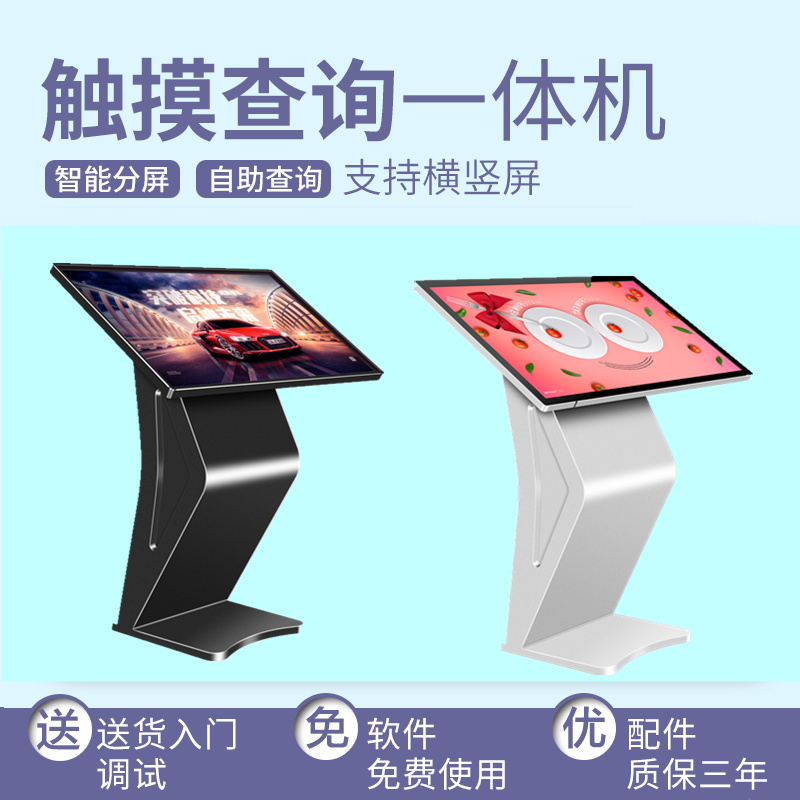

Design sketch:
Specification | Model | Parameter |
Panel | LCD size | 32”、43”、49”、55”、65” |
Panel Purchase Standard | A Grade |
Light Source | WLED |
Display Area | TBD |
| Resolution | 1920 x 1080pixels |
Contrast Ratio | 1200:1（typ.) |
Reaction Time | 43”、49”、55”: 380cd/m²(typ.)
65"：400cd/m²(typ.) |
| Contrast ration | 8(Typ.)(G to G)(ms) |
Frequency | 60Hz |
Visual Angles | 178°(H)/178°(V) |
Life Span | 30,000hrs(min.) |
Program | Operating System | Android 5.1 |
storage | RAM | 2G |
SSD
| 8G or 16G |
Power | Voltage | 100V~240V,50-60HZ |
| Max. power | 43"：≤90W
49"：≤120W
55"、65"：≤180W |
| Standby power | ＜0.5W |
Environment | Working temperature | 0℃～40℃ |
| Storage temperature | -10℃～60℃ |
Storage humidity | 10%～90%RH No condensation |
Working humidity | 20%〜85%RH No condensation |
Maximum usage time (hours/day) | 7x24 hours |
| O/T interface | EARPHONE | 1 |
HDMI | 1 |
USB OTG | 1 |
USB 2.0 | 1 |
SIM Card Holder | 1 |
TF Card Holder | 1 |
LAN | 1 |
| Structure | Net weight | TBD |
Gross weight | TBD |
Bare dimension(H x W x D) | TBD |
Packing dimension(H x W x D) | TBD |
Shell material | Sheet metal |
Shell color | Aluminum Profile Silver/Black |
Language | OSD | English,Chinese (multinational) |
Accessory | Power cable | 1 |
Certificate | 1 |
Operation manual | 1 |
Warranty card | 1
|
